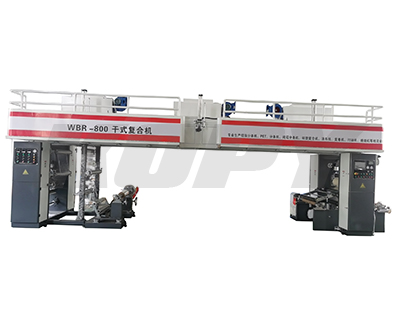

PET coated aluminum or copper mylar foil laminating machine

Introduce

This aluminum mylar foil laminating machine is designed to make composited foil or film for soft packaging application. The whole machine consists of base material unwinding unit, laminated material unwinding units, gluing unit, heating ovens, laminating unit, rewinding unit, controling unit and accessory equipments.
INQUIRY

Features Parameters Video Inquiry

1. Whole machine use synchronous belt transmission

2. Gluing and laminating is driven by ac motor and ac inverter control

3. Rollers in oven is floating type, good for precise tension control

Contact: Mr. Carlos

Phone: +86 18638794084

Tel: +86 13673680478

Email: kopymachinery@gmail.com

Add: No.5 Hehuan Street, Gaoxin Dist., 450001, Zhengzhou, China.

Model No.	JT-1000
Glue extruding method	mesh roller gluing
Base film thickness (micron)	PET: 8 - 75, OPP: 12-40, and etc;
Laminated material thickness (micron)	PET: 8 - 75, OPP: 12-40, aluminum foil: 7 - 60;
Laminating speed (m/minute)	20 - 130
Max. laminating width (mm)	1000
Max. unwinding diameter (mm)	800
Max. rewinding diameter (mm)	1000
Oven length (m)	9
Oven tenperature (℃)	80 - 150
Heating type	electric heating
Unwinding shaft diameter (mm)	75mm expansion shaft
Installed power (Kw)	180
Heating power (Kw)	144
Machine weight (Mt)	10
Machine dimension (mm)	11000 x 2500 x 3600
